** The FIBRA products can only be installed after receiving authorised certification directly from AJAX. Contact security@mstronics.com for more information on how to obtain the certification license

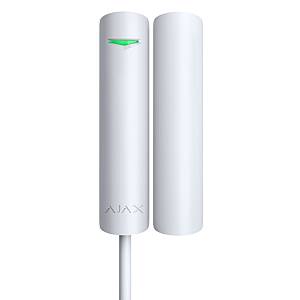

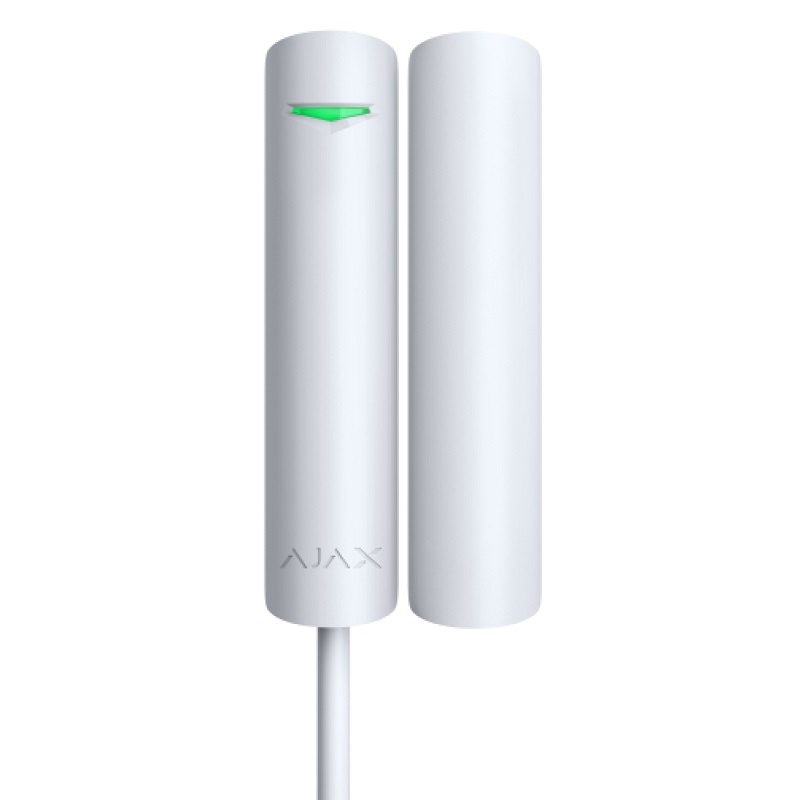

DoorProtect G3 Fibra is designed to detect intrusion and burglary attempts, offering comprehensive coverage for doors, windows, skylights, and vaults. The detector is equipped with two reed switches as opening sensors and a magnetometer for protection against magnet spoofing. Two sizes of magnets provide more mounting options. The device also identifies shock and tilt with a built-in accelerometer, protecting the facility even when windows are in airing mode. All in line with the Ajax user experience, ensuring quick and easy installation of the device
DoorProtect G3 Fibra features two durable reed switches with a minimum service life of 1,000,000 openings, guaranteeing decades of trouble-free operation. Housed in resilient plastic capsules, these switches remain intact even in cases of drops or transportation, ensuring the detector’s effective functionality irrespective of magnet placement
The integrated high-end magnetometer records local magnetic field data during calibration, allowing the sensor to identify and monitor the installed magnet. Immediate alarms are triggered by any changes in the magnetic field, providing protection against magnet spoofing. The straightforward calibration process and adjustment of sensitivity levels in the app ensure precise interference detection and eliminate false alarms. Plastic spacers in the mounting kit reduce the impact of metal surfaces when the detector is installed, for example, on the vault door
The built-in accelerometer responds swiftly to shocks, detecting potential burglary attempts such as door forcing and vault breaking. The shock sensor has three levels of sensitivity, which can be adjusted to match the secured facility specifics. The detector can also ignore a single impact to minimize the risk of false alarms triggered by external factors. Whether there are vibrations from neighboring constructions or heavy passing traffic, the installer can choose the most appropriate settings for accurate detection
The built-in accelerometer is designed to protect open windows, seamlessly adapting to diverse facility requirements. Installers can select a normal tilt angle for doors or windows, ranging from 5 to 25 degrees. The system swiftly detects even the slightest deviations from the usual position and provides customizable tilt detection durations, ranging from 1 second to 1 minute. In case the tilt angle surpasses the specified threshold for an extended period, the system raises an alarm

Compatibility

Compatible hub models : Hub Hybrid (2G) / Hub Hybrid (4G)

Communication

Fibra communication technology : Proprietary wired communication technology. Fibra combines the reliability of wires with the freedom of radio connection. It features: Two-way communication / Advanced anti-sabotage / Instant notifications / Remote configuration via the app
Bus connection: 4-core cable
Encrypted communication
Bus line length : up to 2,000 meters / When using twisted pair U/UTP cat.5

Detection

Sensitive elements : 1 accelerometer / 1 magnetic masking sensor / 2 reed switches
Input to connect an additional detector : Wired detector with the normally closed (NC) contact type
Shock sensor sensitivity : 3 levels / Adjusted by a PRO or a user with admin rights in the Ajax app
Option to ignore single impact : Adjusted by a PRO or a user with admin rights in the Ajax app
Tilt sensor activation threshold : from 5° to 25° / Adjusted by a PRO or a user with admin rights in the Ajax app
Spacers : 2 pcs / Are needed to install the detector or the magnet on a metal surface, as they help to reduce the distance between the detector and the magnet. You can use one or two spacers at once
Chime : When the system is disarmed, the siren makes a special sound to notify that the opening detectors are triggered

Sabotage protection

Tamper alarm : 2 tampers / Notifications on attempts to detach the detector from the surface or open the front lid
Magnetic masking sensor : The device detects an attempt to mask the main magnet of DoorProtect G3 Fibra with a fraudulent magnet
Protection against spoofing : device authentication

Power supply

Fibra line power supply : 5−30 V⎓, up to 35 mW / The detector is powered by the hub

Enclosure

Dimensions : 102 × 21 × 19.2 mm
Weight : 62 g
Operating temperature range : from −10°C to +40°C
Operating humidity : up to 75%

Certification:	Grade 3,CE
Communication:	2Way
Connectivity:	Wired
Installation:	Door/Window
Range:	Up to 2000 meters
Shock Detector:
Temperature Sensor:
Tilt Detector:
