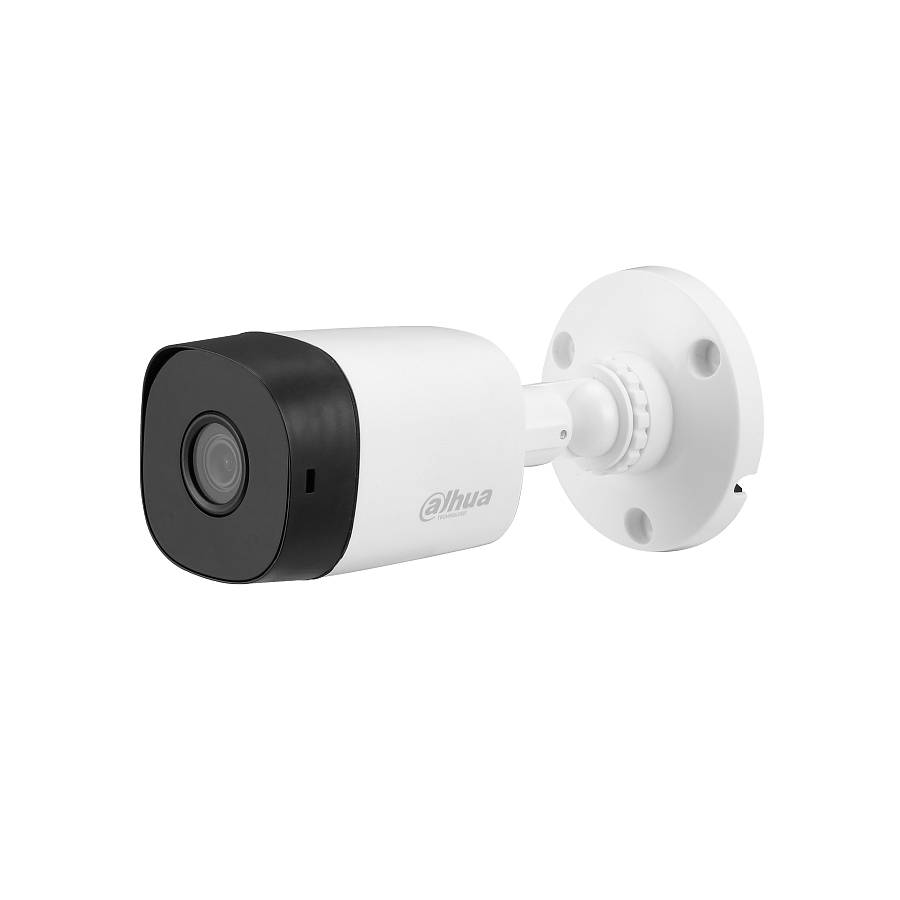

Dahua HDCVI 5.0MP Bullet 3.6mm B1A51
Product code: 10253620 // MPN: HAC-B1A51-0360B
New entry
€36,63 (inc. VAT)
1-3 days
Similar products
New entry
- In order to use the 5MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000001.0.R.200908 or later version.
- Max. 25 fps@5MP (16:9 video output)
- CVI/CVBS/AHD/TVI switchable
- 3.6 mm fixed lens (2.8 mm optional)
- Max. IR length 20 m, Smart IR
- IP67, DC12V
Camera
- Image Sensor : 1/2.7" CMOS
- Effective Pixels : 2880 (H) × 1620 (V)
- Scanning System : Progressive
- Electronic Shutter Speed : PAL: 1/25~1/100000s / NTSC: 1/30~1/100000s
- Minimum Illumination : 0.02Lux/F1.85, 30IRE, 0Lux IR on
- S/N Ratio : More than 65dB
- IR Distance : Up to 20m
- IR On/Off Control : Auto / Manual
Lens
- Lens Type : Fixed lens / Fixed iris
- Mount Type : M12
- Focal Length : 3.6mm
- Max Aperture : F2.0
- Angle of View : 104° × 88° × 46°(diagonal × horizontal × vertical)
- Focus Control : N/A
- Close Focus Distance : 1.2m
Video
- Resolution : 5M (2880 × 1620); 4M (2560 × 1440); 1080P (1920 × 1080); 960H (960 × 576/960 × 480)
- Frame Rate : CVI:PAL:5M@25 fps; 4M@25 fps; 1080P@25 fps; 5M@25 fps / NTSC:5M@25 fps;4M@30 fps; 1080P@30 fps; 5M@25 fps / AHD:PAL:4M@25 fps; / NTSC:4M@30 fps; / TVI:PAL:4M@25 fps; / NTSC:4M@30 fps; / CVBS:960H;
- Video Output : 1-channel BNC high definition video output / CVBS video output (Can switch)
- Day/Night : Auto (ICR) / Manual
- OSD Menu : Multi-language
- BLC Mode : BLC / HLC / DWDR
- WDR : DWDR
- Gain Control : AGC
- Noise Reduction : 2D
- White Balance : Auto / Manual
- Smart IR : Auto / Manual
- Mirror : Off/On
- Privacy Masking : Off / On (8 area, rectangle)
Certifications
- CE (EN55032, EN55024, EN50130-4,EN60950-1,
- EN 62368-1:2014+A11:2017)
- FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
Interface
- Audio Interface : N/A
Eelectrical
- Power Supply : 12V DC ±30%
- Power Consumption : Max. 3.7W (12V DC, IR on)
Environmental
- Operating Conditions : -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH * Start up should be done at above -40°C (-40°F)
- Storage Conditions : -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH
- Ingress Protection & Vandal Resistance : IP67
Construction
- Casing : Plastic
- Dimensions : 69.8 mm × 69.8 mm × 149.3 mm
- Net Weight : 0.15 kg
- Gross Weight : 0.25 kg
| Camera Protocols: | AHD/HDCVI/TVI/CVBS |
| Camera Resolution: | 5.0 MP |
| Housing Type: | Bullet |
| IR Distance: | Up to 20m |
| Lens Size: | 3.6mm |
| Lens Type: | Fixed |
| WDR: | DWDR |
