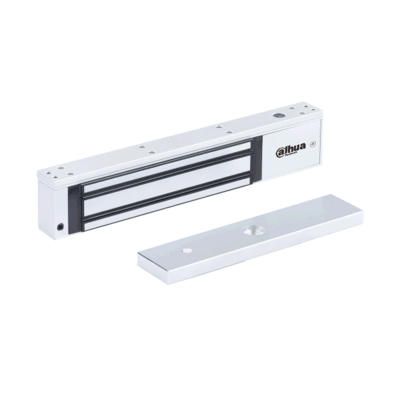

Dahua AC Single Door Magnetic Lock ASF280A
Product code: 10274120 // MPN: ASF280A-V1
New entry
€45,15 (inc. VAT)
1-3 days
Similar products
- 280KG Anti-pull.
- Built-in reverse current protection device(MOV).
- Aluminum shell with high strength alloy material.
- Electromagnetic suction work completely, there is no mechanical failure.
- Can be set DC12V or DC24V.
- The residual magnetic design proof, wear materials.
- Double lock body insulation treatment.
- Supports door detector signal feedback.
Basic
- Suction Plate Dimensions : 180 mm × 38 mm × 11 mm (7.09" × 1.50" × 0.43")
- Applicable Door Type : Wooden door, glass door, metal door, fire door, etc
Function
- Signal Output : Door status feed back
- Security : Open while power off
General
- Net Weight : 2 Kg (4.41 lb)
- Accessory : 280 L; 280 U; 280 ZL
- Starting Current : 480 mA; 240 mA
- Power Supply : 12 VDC; 24 VDC
- Lock Dimensions : 250 mm × 47 mm × 26 mm (9.84" × 1.85" × 1.02")
- Operating Temperature : –30 °C to +60 °C (–22 °F to +140 °F)
- Operating Humidity : ≤ 95%
| Lock Type: | Electromagnetic |
| Product Type: | Lock |
