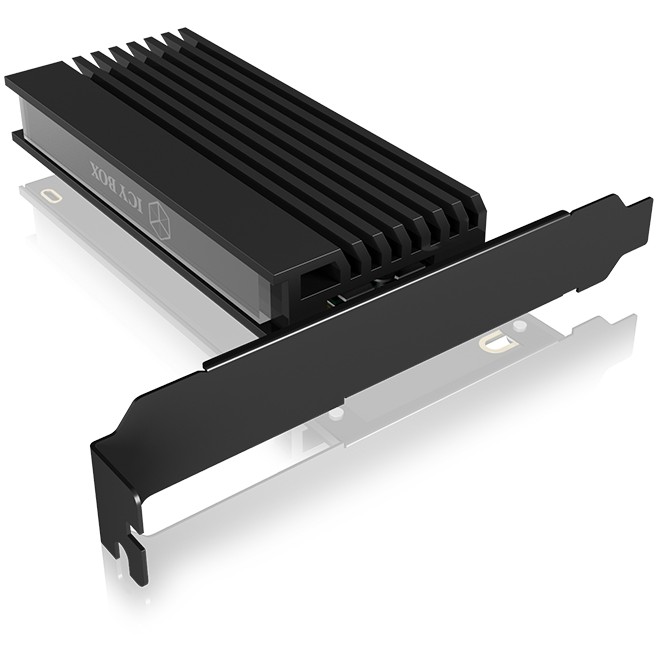

PCI Express Card (x4) > 1x M.2 NVME 2280/2260/2242 mit Kühlkörper RaidSonic
Product code: 10412322 // MPN: IB-PCI214M2-HSL // EAN: 4250078167242
New entry
€33,56 (inc. VAT)
4-8 days (12 pcs available)
Similar products
Future-proof expansion
With the PCI expansion card you can easily upgrade older systems to the new level. You can experience all the advantages of a fast M.2 SSD without having to rebuild the whole system again.
Customizable

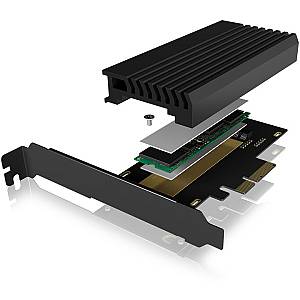

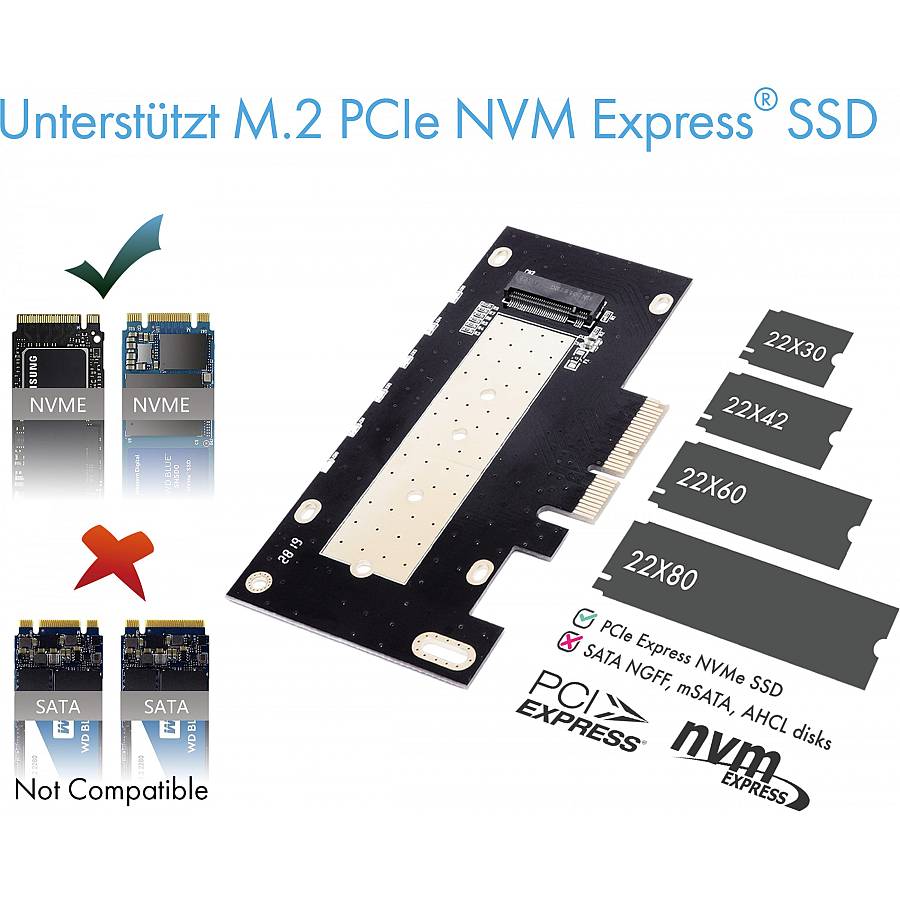

The IB-PCI214M2-HSL contains both a full and a half profile cover. This means that it can be used in almost any type of housing without any problems. In addition. M.2 SSDs with the dimensions of 22x30/42/60/80 mm can be installed. No matter what configuration you need. the IB-PCI214M2-HSL gives full throttle in any setting.
Speed until the board glows
The current M.2 NVMe SSDs achieve more than five times the speed of traditional SATA SSDs. This enormous power naturally generates a lot of waste heat on the small M.2 cards. In order to protect the card and the system. the speed is throttled if the SSD heats up too much. The IB-PCI214M2-HSL offers enough cooling power with the enclosed heat conduction pads and the large heat sink so that you can enjoy the full power of your M.2 SSD at all times.
Power and design

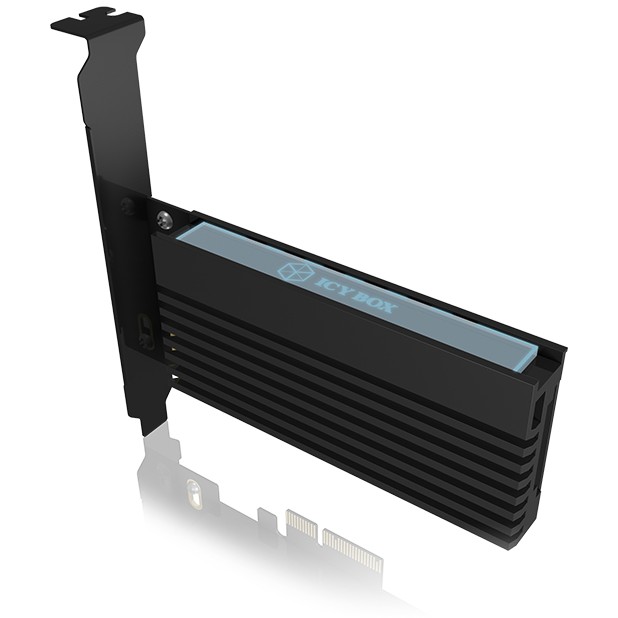

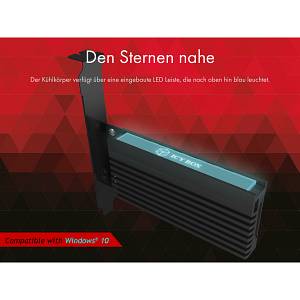

The massive heat sink is not only responsible for temperature control. The integrated acryl glass highlight is illuminated by LEDs and immerses the system in a rich blue tone.
Ports & interfaces
Host interface: PCIe
Output interface: M.2
Expansion card standard: PCIe 4.0
Feature: NVMe
Number of M.2 (M) slots: 1
Design
Feature: Internal
Product colour: Black
Cooling type: Passive
Feature: LED indicators
Country of origin: China
Features
Data transfer rate (max): 64 Gbit/s
Technical details
Feature: Sustainability compliance
Compliance certificates: CE
Weight & dimensions
Width: 115 mm
Depth: 16 mm
Height: 60 mm
Weight: 23 g
Packaging data
Feature: Mounting brackets included
Feature: Manual
Package width: 155 mm
Package depth: 28 mm
Package height: 205 mm
Package weight: 300 g
Logistics data
Harmonized System (HS) code: 84733020
Products per master (outer) case: 40 pc(s)
Master (outer) case width: 330 mm
Master (outer) case length: 500 mm
Master (outer) case height: 300 mm
Master (outer) case gross weight: 12.1 kg
Other features
Material: Metal. Plastic
