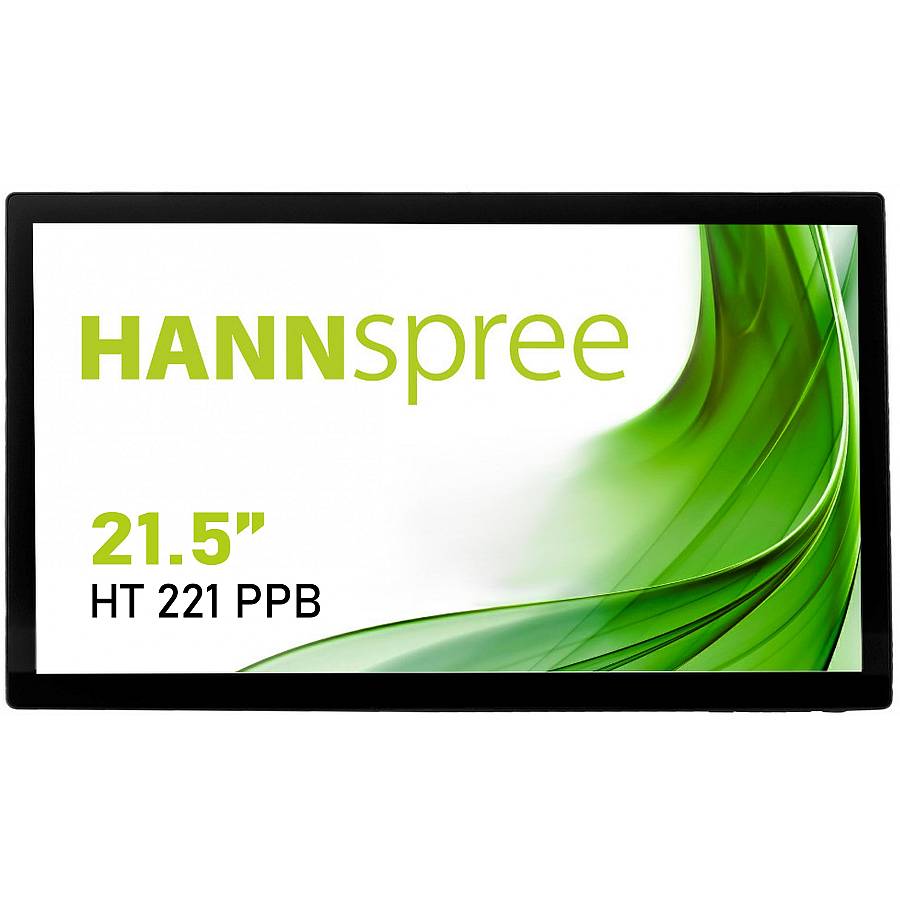

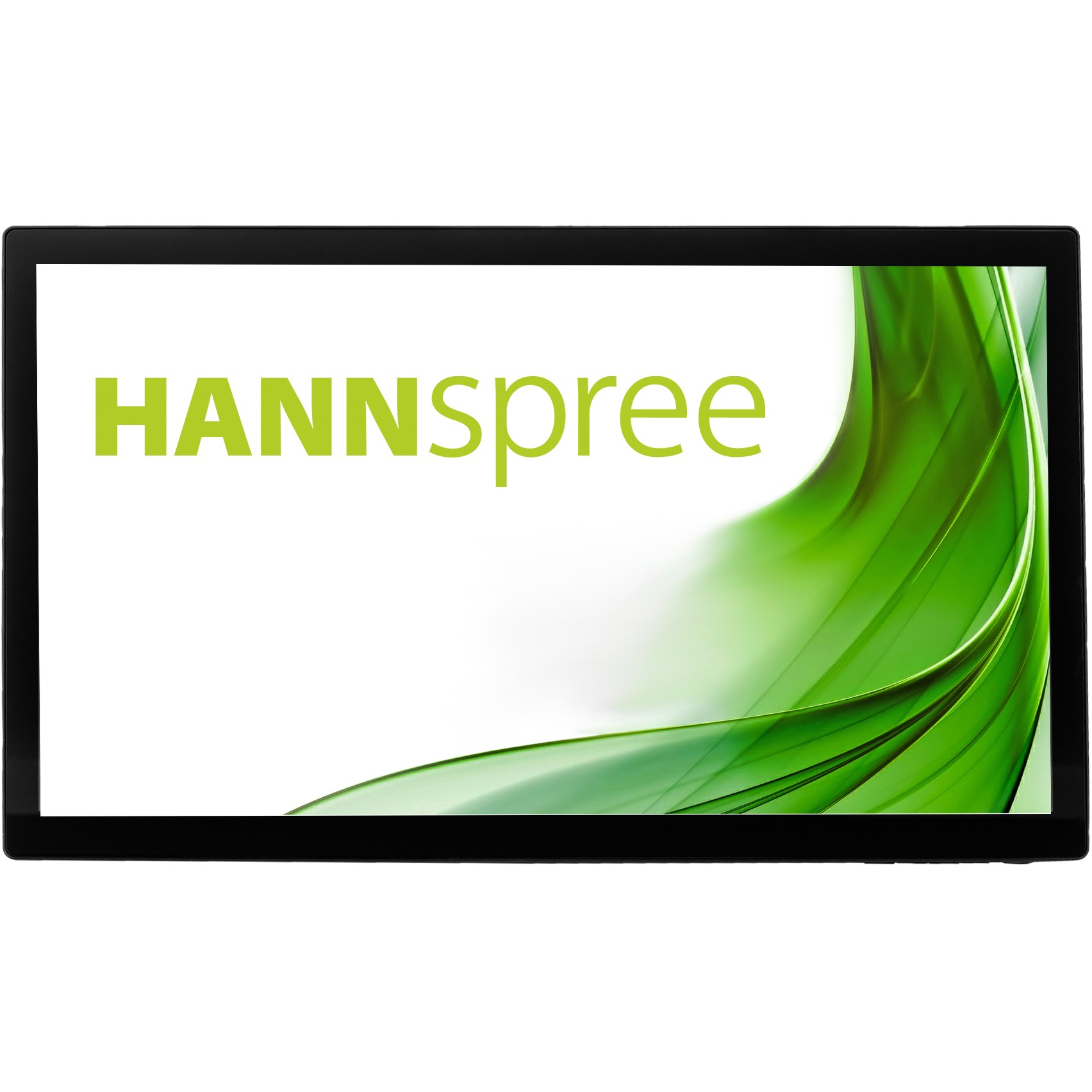

The HANNSpree HT221PPB / PPW delivers seamless and accurate touch response. Featuring Ultra-Wide Viewing Angle LED-backlight LCD screen technology and with edge-to-edge glass. the HANNspree HT221PPB / PPW is an excellent choice for a vast array of demanding interactive applications. making it an ideal display for integration in a kiosk. totem and a perfect solution for interactive digital signage. In-store Retail. Gaming and many other sectors.

NOTE: The monitor stand is not included. A VESA compatible stand can be purchased separately for desktop usage.

Lifelike Visuals with Ultra-Wide Viewing Angles
The Touch monitor HT221PPB / PPW features a 16:9 aspect ratio LED-backlit panel with a 178° ultra-wide view angle that minimizes colour shift on both horizontal and vertical planes to ensure quality visuals from almost any direction. It delivers improved colour accuracy plus increased energy efficiency.

The HT221PPB / PPW uses a 178°(H) / 178°(V) ultra-wide viewing angle Full HD panel that eliminates colour shift from almost any direction and in nearly every angle.

Extensive connectivity

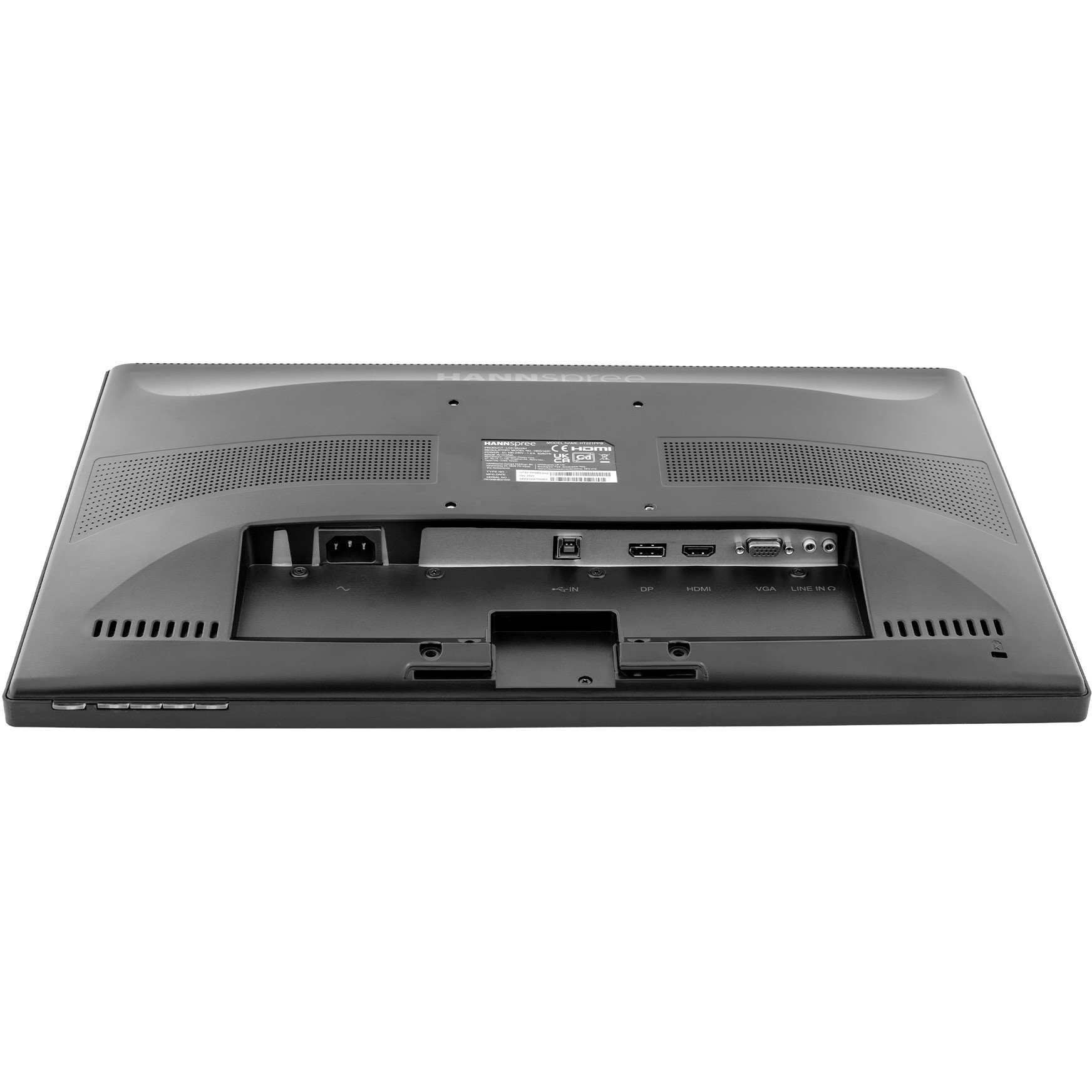

The HANNspree HT221PPB / PPW features a host of connectivity options that include VGA. HDMI and DP. The HT221PPB / PPW Open Frame Touch Monitor ensures that your monitor is more compatible and ready to handle all of your content.

Enabling touch is easy! Simply connect the USB cable from your PC to the monitor’s USB upstream port. and connect one of the video inputs to project images onscreen

Scratch Resistant - Multi-Touch Screen with 7H Surface Hardness
7H Scratch resistance is essential for touch solutions used for education and public environment. This is achieved thanks to a glass overlay covering the screen. This means that the panel surface can withstand impact from objects and scratches. making it perfect for public spaces and educational institutions.

Our toughened Hard Glass fronted LED Monitors (≥7H hardness rating) are designed specifically for retail and Industrial applications. offering protection from impacts and dirt for a long life solution.

Vesa Wall Mount
The HT221PPB / PPW complies with the VESA standard 100x100mm. it means that you can easily mount the display to any VESA mounting kit.

NOTE: The monitor stand is not included. A VESA compatible stand can be purchased separately for desktop usage.

Projected Capacitive (PCAP) Touch Technology
Now multiple users can experience shared touchscreen interaction. Using up to 10 finger touch points. the HANNSpree HT221PPB / PPW Monitor allows everyone to play and collaborate at the same time.

The precise and accurate multitouch display — allowing up to 10 simultaneous touches — allowing you to work smarter and more efficiently.

With Projected Capacitive Touch. users can enjoy a smoother and more accurate touch display experience with increased interactivity. Thanks to the glass overlay this technology is highly durable. the touch performance is unaffected by everyday use and mishaps such as dirt. dust. condensation. liquid spills or cleaning solutions.

Speakers & Headphones
The HT221PPB / PPW is equipped with stereo speakers. for clear audio that sounds like it’s coming from a high-end stereo system. The speakers deliver a true stereo effect for an enhanced listening experience. especially when displaying multimedia content during lessons. therefore removing the need for external speakers.

Display
Display diagonal: 54.6 cm (21.5")
Display resolution: 1920 x 1080 pixels
HD type: Full HD
Native aspect ratio: 16:9
Display technology: LED
Panel type: VA
Backlight type: LED
Feature: Touchscreen
Touchscreen technology: Projected capacitive system
Touch technology: Multi-touch
Number of simultaneous touchpoints: 10
Display brightness: 350 cd/m²
Response time: 4 ms
Screen shape: Flat
Contrast ratio (typical): 1000:1
Contrast ratio (dynamic): 5000000:1
Maximum refresh rate: 60 Hz
Viewing angle. horizontal: 178°
Viewing angle. vertical: 178°
Pixel pitch: 0.248 x 0.248 mm
Horizontal scan range: 30 - 83 kHz
Vertical scan range: 56 - 75 Hz
Display diagonal (metric): 54.6 cm
Surface hardness: 6H
Multimedia
Number of speakers: 2
RMS rated power: 2 W
Feature: Built-in speaker(s)
Design
Product colour: Black
Glass thickness: 3 mm
Ports & interfaces
Feature: USB Touch port
USB Touch ports quantity: 1
VGA (D-Sub) ports quantity: 1
Feature: HDMI
HDMI ports quantity: 1
DisplayPorts quantity: 1
Headphone outputs: 1
Ergonomics
Feature: VESA mounting
Feature: Wall mountable
Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: On Screen Display (OSD)
Number of OSD languages: 11
Power
Energy efficiency class (SDR): D
Energy consumption (SDR) per 1000 hours: 13 kWh
Power consumption (typical): 13 W
Power consumption (standby): 0.37 W
Power consumption (off): 0.2 W
AC input voltage: 100 - 240 V
AC input frequency: 50 / 65 Hz
Power supply type: AC
European Product Registry for Energy Labelling (EPREL) code: 394634
Weight & dimensions
Width (without stand): 510.9 mm
Depth (without stand): 49.1 mm
Height (without stand): 313 mm
Weight (without stand): 4.14 kg
Packaging data
Package width: 563 mm
Package depth: 101 mm
Package height: 428 mm
Package weight: 5.34 kg
Packaging content
Cables included: AC. HDMI. USB Type-A to USB Type-B
Feature: Quick start guide
Logistics data
Harmonized System (HS) code: 85285210
