NETWORK PCI CARDS

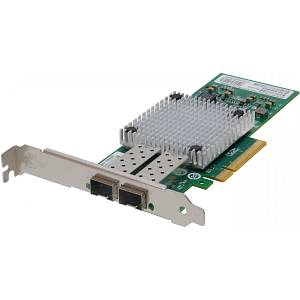

The LevelOne GNC-0202 Gigabit network card facilitates high-speed connectivity within a fiber-optic network. supporting Dual SFP+ Connectivity and Fibre Channel over Ethernet (FCoE). Wake-on-LAN functionality allows remote start-up and shutdown. with iSCSI remote boot providing further flexibility. GNC-0202 also features an Intel PROSet Utility for Windows Device Manager as well as providing advanced load balancing across multiple CPUs. and is compatible with most network operating systems.

- Built-in Wake-on-LAN feature to startup/shutdown computers remotely
- Supports Dual SFP+ Connectivity
- Load balancing across multiple CPUs
- Supports iSCSI remote boot
- Supports Fibre Channel over Ethernet (FCoE)
- Supports most network operating systems (NOS)
- Intel® PROSet Utility for Windows* Device Manager
- IEEE 1588 and 802.1as (Time Sync)

Ports & interfaces
Connectivity technology: Wired
Host interface: PCI Express
Interface: Fiber
Fiber ports quantity: 2
Fiber optic connector: SFP+
PCI version: 2.0
Network
Networking standards: IEEE 802.1Q. IEEE 802.1p. IEEE 802.3. IEEE 802.3ad
Ethernet interface type: 10 Gigabit
Feature: Wake-on-LAN ready
Feature: Jumbo frames support
Jumbo frames: 9.5
Feature: iSCSI support
Design
Product colour: Aluminium
Feature: Internal
LED indicators: Activity. Link
System requirements
Server operating systems supported: Windows Server 2003. Windows Server 2008. Windows Server 2008 R2. Windows Server 2012. Windows Server 2012 R2
Operational conditions
Operating temperature (T-T): 0 - 55 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 5 - 95%
Storage relative humidity (H-H): 5 - 95%
Weight & dimensions
Width: 165 mm
Depth: 69 mm
Height: 17 mm
Weight: 110 g
Packaging data
Feature: Drivers included
Quantity per pack: 1 pc(s)
Package type: Box
Package width: 145 mm
Package depth: 220 mm
Package height: 30 mm
Package weight: 62 g
Packaging content
Feature: Mounting brackets included
Feature: Quick installation guide
Feature: Manual
Logistics data
Harmonized System (HS) code: 85176990
Other features
Data transfer rate: 5 GT/s
Intel® Virtualization Technology (Intel® VT): VT-c
Feature: Intel Virtual Machine Device Queues (VMDq)
Feature: PCI-SIG* SR-IOV Capable
Power supply: 6.5 W
