NETWORK PCI CARDS

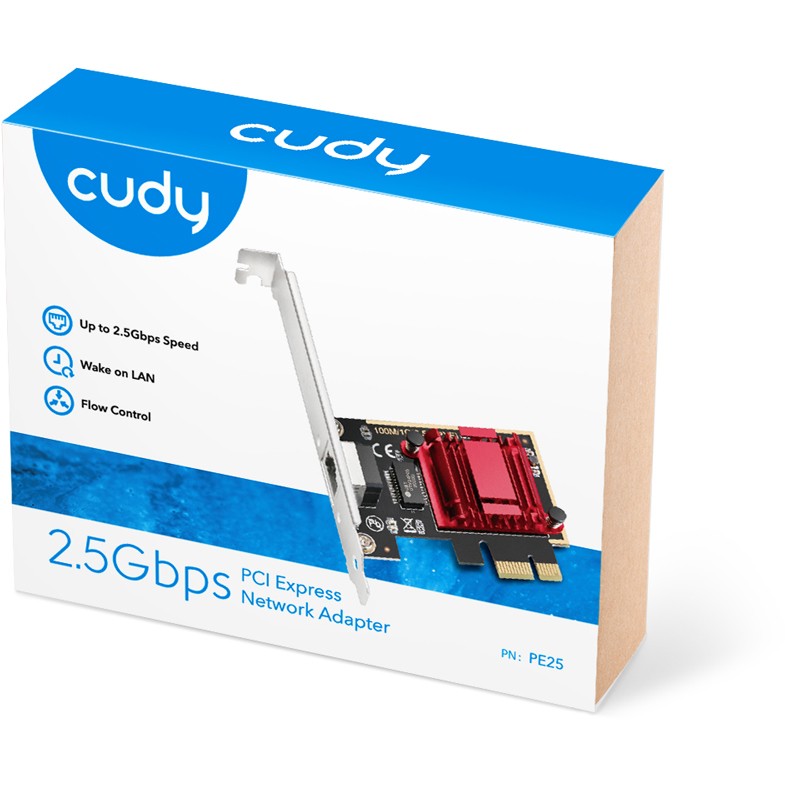

Arm your PC with the Latest 2.5Gbps PCIe Adapter
Theoretical maximum speed using different Ethernet cables. 2.5GBASE-T specification (802.3bz) supports 2.5Gbps speeds over standard Cat5e (or Higher) cables at distances up to 100m (328 ft.)

Ports & interfaces
Connectivity technology: Wired
Host interface: PCI Express
Interface: Ethernet
Ethernet LAN (RJ-45) ports: 1
PCI Card form factor: Full-height (low-profile)
Network
Networking standards: IEEE 802.3. IEEE 802.3ab. IEEE 802.3az. IEEE 802.3bz. IEEE 802.3u
Feature: Ethernet LAN
Ethernet interface type: 2.5 Gigabit Ethernet. Fast Ethernet. Gigabit Ethernet
Ethernet LAN data rates: 10.100.1000.2500 Mbit/s
Cabling technology: 10/100/1000BaseT(X)
Copper ethernet cabling technology: 10BASE-T. 1000BASE-TX
Feature: Wake-on-LAN ready
Feature: Auto MDIX IEEE
Feature: Full duplex
Feature: Jumbo frames support
LAN controller: Realtek RTL8125
Design
Component for: PC/Server
Feature: Internal
LED indicators: Activity. Link. Speed
Mean time between failures (MTBF): 376212 h
System requirements
Windows operating systems supported: Windows 10. Windows 7. Windows 8. Windows 8.1
Server operating systems supported: Windows Server 2008. Windows Server 2012
Operational conditions
Operating temperature (T-T): -10 - 60 °C
Storage temperature (T-T): -20 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%
Weight & dimensions
Width: 71.5 mm
Depth: 50 mm
Height: 1.6 mm
Packaging data
Feature: Low-profile bracket
Package type: Box
Packaging content
Feature: Mounting brackets included
Feature: Resource CD
Feature: Quick installation guide
Other features
Feature: Flow control support
