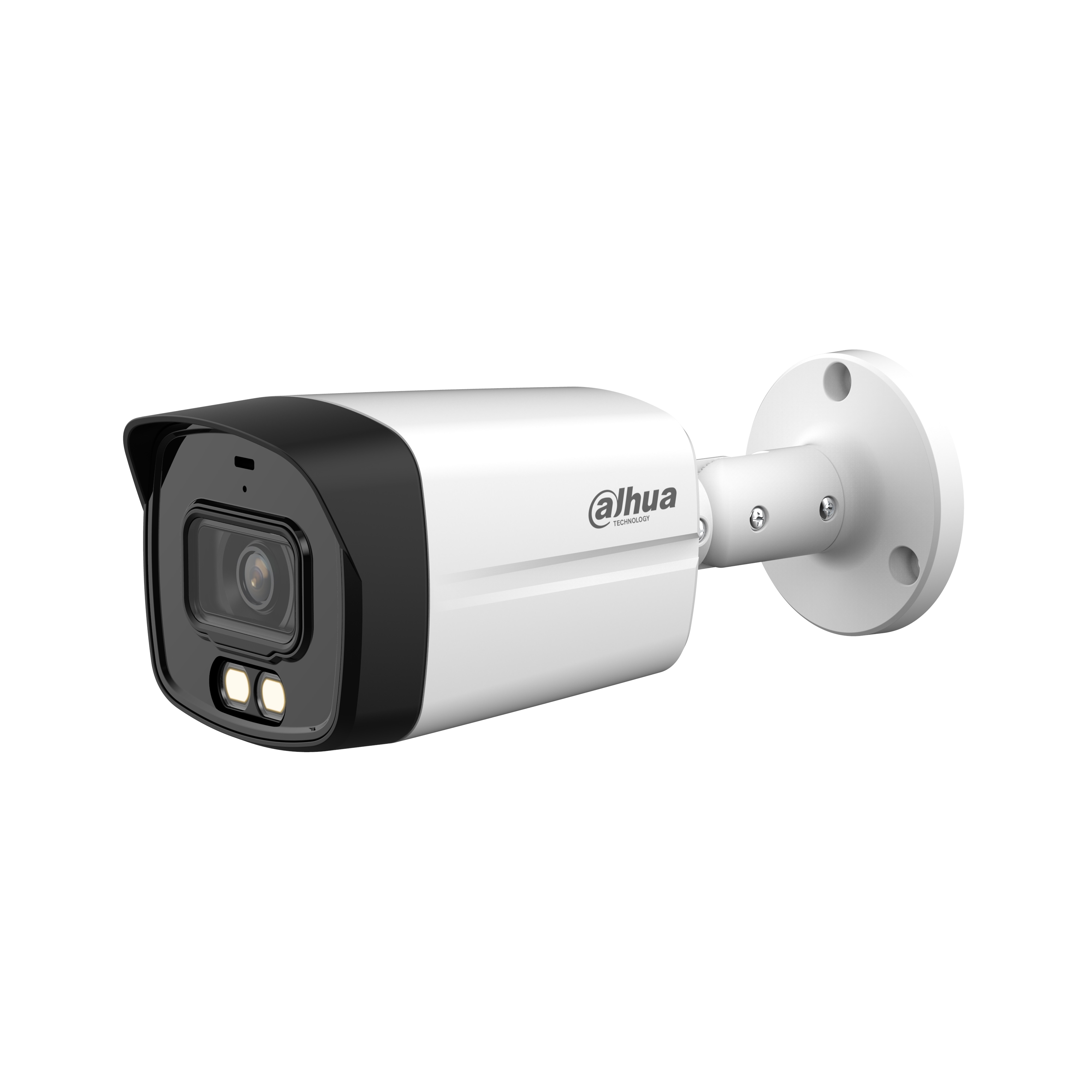

Dahua HDCVI 5.0MP Bullet 3.6mm Dual Illuminator HFW1509TLM-IL-A-0360B-S2
Product code: 10253820 // MPN: HFW1509TLM-IL-A-0360B-S2
New entry
€107,71 (inc. VAT)
1-3 days
Similar products
* In order to use the 5MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000001.0.R.200908 or later version.
- Max 25 fps@5MP (16:9 video output)
- 120 dB true WDR, 3D NR
- Smart Dual Illuminators
- 40 m illumination distance
- Super Adapt
- Built-in MIC
- 3.6 mm fixed lens
- CVI/CVBS/AHD/TVI switchable
- IP67, 12 VDC
Camera
- Pixel : 5MP
- Image Sensor : 5MP CMOS
- Max. Resolution : 2880 (H) × 1620 (V)
- Scanning System : Progressive
- Electronic Shutter Speed : PAL: 1/3 s–1/100000 s / NTSC: 1/4 s–1/100000 s
- Min. Illumination : 0.001 lux@F1.0 (Color, 30 IRE) / 0.0001 lux@F1.0 (B/W, 30 IRE) / 0 lux (Illuminator on)
- S/N Ratio : >65 dB
- Illumination Distance : IR: 40 m / Warm light: 40 m
- Illuminator On/Off Control : Auto; manual
- Illuminator Number : 2 (IR light) / 2 (Warm light)
Lens
- Lens Type : Fixed-focal
- Mount Type : M12
- Focal Length : 3.6 mm
- Max. Aperture : F1.0
- Field of View : 3.6 mm: H: 89°; V: 47°; D: 104°
- Iris Control : Fixed
- Close Focus Distance : 3.6 mm: 2.2 m
Video
- Video Frame Rate : CVI : PAL : 5M@25 fps; 4M@25 fps; 1080p@25 fps / NTSC : 5M@25 fps; 4M@30 fps; 1080p@30 fps; / AHD : PAL: 4M@25 fps; / NTSC : 4M@30 fps; / TVI : PAL: 4M@25 fps; / NTSC: 4M@30 fps; / CVBS: PAL: 960H; / NTSC: 960H
- Resolution : 5M (2880 × 1620); / 4M (2560 × 1440); / 1080p (1920 × 1080); / 960H (960 × 576/960 × 480)
- Day/Night : Auto (ICR)/Color/B/W
- BLC : BLC; HLC; WDR; HLC-Pro
- WDR : 120 dB
- White Balance : Auto; Area white balance
- Gain Control : Auto; manual
- Noise Reduction : 3D NR
- Defog : Electronic defog
- Digital Zoom : 4×
- Mirror : Yes
- Privacy Masking : Off/On (8 areas, rectangle)
- Illumination Mode : Smart IR&WL; WL Mode; IR Mode
Certifications
- Certifications : CE (EN55032: 2015, EN61000-3-2: 2014, EN61000-3-3: 2013, EN55024: 2010+A1: 2015, EN55035: 2017, EN50130-4: 2011+A1: 2014, EN62368-1: 2014+A11: 2017) / FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) / UL (UL62368-1+CAN/CSA C22.2 No.62368-1-14)
Port
- Video Output : Video output choices of CVI/TVI/AHD/CVBS by one BNC port
- Audio Input : One channel built-in MIC
Power
- Power Supply : 12 VDC ± 30%
- Power Consumption : Max 5.7 W (12 VDC, LED on)
Environment
- Operating Temperature : –40 °C to +60 °C
- Operating Humidity : <95% (RH), non-condensing
- Storage Temperature : –40 °C to +60 °C
- Protection : IP67
Structure
- Casing Material : Metal front cover + plastic rear barrel + metal bracket
- Product Dimensions : 198.4 mm × 80.2 mm × 76.2 mm
- Packaging Dimensions : 240 mm × 115 mm × 111 mm
- Net Weight : 0.34 kg
- Gross Weight : 0.51 kg
- Installation : Wall mount; ceiling mount; vertical pole mount
| Audio: | Built-in Mic |
| Camera Protocols: | AHD/HDCVI/TVI/CVBS |
| Camera Resolution: | 5.0 MP |
| Full-Color: | |
| Housing Type: | Bullet |
| Illumination: | Up to 40m |
| IR Distance: | Up to 40m |
| Lens Size: | 3.6mm |
| Lens Type: | Fixed |
| WDR: | 120dB true WDR |
