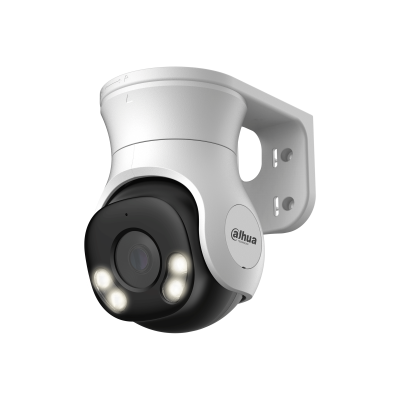

Dahua HDCVI 5.0MP PT Dual Illumination 2.8mm PT1500A-IL-A
Product code: 10254620 // MPN: HAC-PT1500A-IL-A-0280B-S2
New entry
€93,45 (inc. VAT)
1-3 days
Similar products
* The parameters and datasheets below can only be applied to PT1200-IL-S6 series.
* In order to use the 5MP 16:9 andSmart Dual Light HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000004.1.R.220323 or later version.
- Max. 25 fps@5MP (16:9 video output).
- Smart Dual Light.
- Smart Area Lighting.
- Pan & Tilt.
- 40 m illumination distance.
- Super Adapt.
- Built-in Mic.
- Quick-to-install structure saves installation time.
- 2.8 mm fixed lens
- IP66, 12 VDC.
Camera
- Image Sensor : 5 MP CMOS
- Max. Resolution : 2880 (H) × 1620 (V)
- Scanning System : Progressive
- Electronic Shutter Speed : PAL: 1/25 s–1/100,000 s; / NTSC: 1/30 s–1/100,000 s
- Min. Illumination : 0.05 lux@F2.0 (Color, 30 IRE) / 0.005 lux@F2.0 (B/W, 30 IRE) / 0 lux (Illuminator on)
- S/N Ratio : >65 dB
- Illumination Distance : IR: 40 m (131.23 ft) / Warm light: 40 m (131.23 ft)
- Illuminator On/Off Control : Auto
- Illuminator Number : 4 (Warm light);4 (IR light)
- Angle Adjustment : Pan: 0°–355° / Tilt: 0°–90°
*DO NOT adjust the angle of the main body or enclosure manually
Lens
- Lens Type : Fixed-focal
- Auto Focus : No
- Lens Mount : M12
- Focal Length : 2.8 mm
- Max. Aperture : F2.0
- Field of View : 2.8 mm: H: 112°; V: 58°; D: 134°
- Iris Control : Fixed
- Close Focus Distance : 2.8 mm: 0.9 m
Video
- CVI: / PAL: 5M@25 fps; 5M@12.5 fps; 4M@25 fps; 1080p@25 fps
NTSC: 5M@25 fps; 5M@10 fps; 4M@30 fps; 1080p@30 fps / AHD: / PAL: 4M@25 fps; / NTSC: 4M@30 fps / TVI: / PAL: 4M@25 fps; / NTSC: 4M@30 fps / CVBS: / PAL: 960H; / NTSC: 960H - Resolution : 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480)
- Day/Night : Auto(ICR)/Color/B/W
- BLC : BLC; HLC; DWDR
- WDR : DWDR
- White Balance : Auto;Manual
- Gain Control : Auto;Manual
- Noise Reduction : 2D NR
- Illumination Mode : Smart IR&WL; WL Mode; IR Mode
- Mirror : Yes
- Privacy Masking : Off/On (8 areas, rectangle)
Certification
- Certifications : CE-LVD: EN 62368-1; / CE-EMC: EN 55032; EN 55035
Port
- Video Output : Video output choices of CVI/TVI/AHD/CVBS by one BNC port
- Audio Input : One channel built-in Mic
Power
- Power Supply : 12 VDC ± 30% (It is recommended to use a power adapter to supply the power for one camera)
- Power Consumption : Max 6.4 W (12 V DC, LED on)
Environment
- Operating Temperature : –40 °C to +60 °C (–40 °F to +140 °F)
- Operating Humidity : <95% (RH), non-condensing
- Storage Temperature : –40 °C to +60 °C (–40 °F to +140 °F)
- Storage Humidity : <95% (RH), non-condensing
- Protection : IP66
- Anti-corrosion Level : Basic Protection
Structure
- Casing Material : Plastic
- Product Dimensions : 92.9 mm × 91.3 mm × 130 mm
- Net Weight : 0.39 kg
- Gross Weight : 0.64 kg
- Installation : Wall mount; ceiling mount; vertical pole mount
| Audio: | 1ch in,Built-in Mic |
| Camera Resolution: | 5.0 MP |
| Full-Color: | |
| Housing Type: | PTZ |
| Illumination: | Up to 40m |
| IR Distance: | Up to 40m |
| Lens Size: | 2.8mm |
| Lens Type: | Fixed |
| WDR: | DWDR |
