NETWORK PCI CARDS

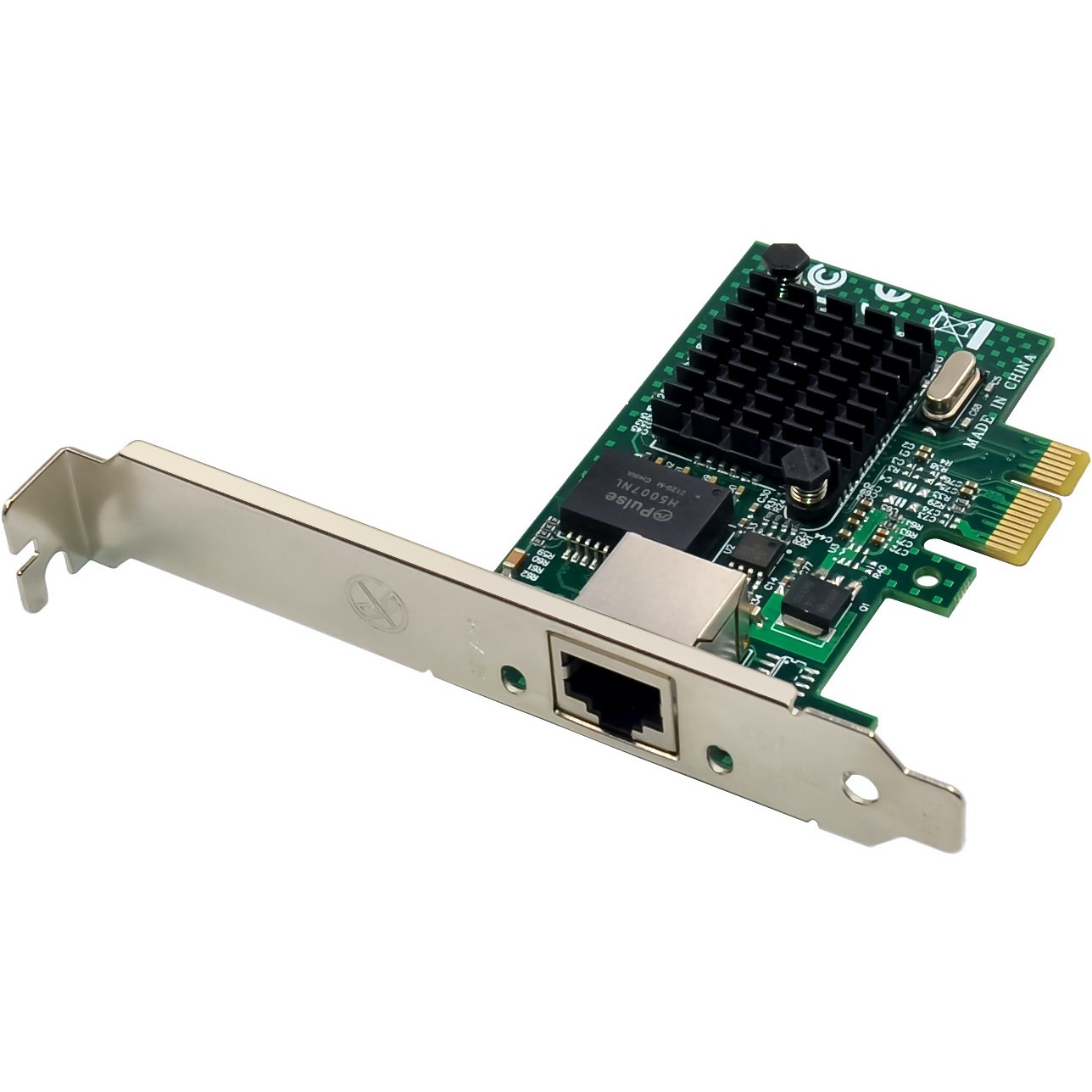

The LevelOne GNC-0112 Gigabit network card facilitates high-speed connectivity within network. with PCI Express (v1.1 compliant) supporting speeds of up to 2.5 Gbps. Wake-on-LAN functionality allows remote start-up. GNC-0112 Supports IEEE 802.1P Layer 2 Priority Queuing for improving traffic flow. IEEE 802.1Q VLAN allows network segmentation. further enhancing performance and security.


Ports & interfaces
Connectivity technology: Wired
Host interface: PCI Express
Interface: Ethernet
Ethernet LAN (RJ-45) ports: 1
Network
Maximum data transfer rate: 1000 Mbit/s
Networking standards: IEEE 802.1ab. IEEE 802.3. IEEE 802.3u
Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet. Gigabit Ethernet
Ethernet LAN data rates: 10.100.1000 Mbit/s
Feature: Wake-on-LAN ready
Design
Component for: PC
Product colour: Black. Green. Silver
Feature: Internal
Chipset: Broadcom BCM5751
LED indicators: Activity. Link
Certification: CERoHS
System requirements
Windows operating systems supported: Windows 10. Windows 7. Windows XP
Feature: Linux operating systems supported
Server operating systems supported: Windows Server 2003
Operational conditions
Operating temperature (T-T): 0 - 45 °C
Operating relative humidity (H-H): 5 - 95%
Weight & dimensions
Width: 82 mm
Depth: 56 mm
Height: 20 mm
Weight: 45.6 g
Packaging content
Feature: Mounting brackets included
Feature: Resource CD
Feature: Quick installation guide
Logistics data
Harmonized System (HS) code: 85176990
